Stainless Steel W4 Heavy Duty T-Bolt Hose Clips Clamps

SKU SRU-TC
£1.71
** International customers please read our Import Fees & VAT page (link in footer) before purchasing.
Clamp Size
Please choose
Pack Quantity
Please choose
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it

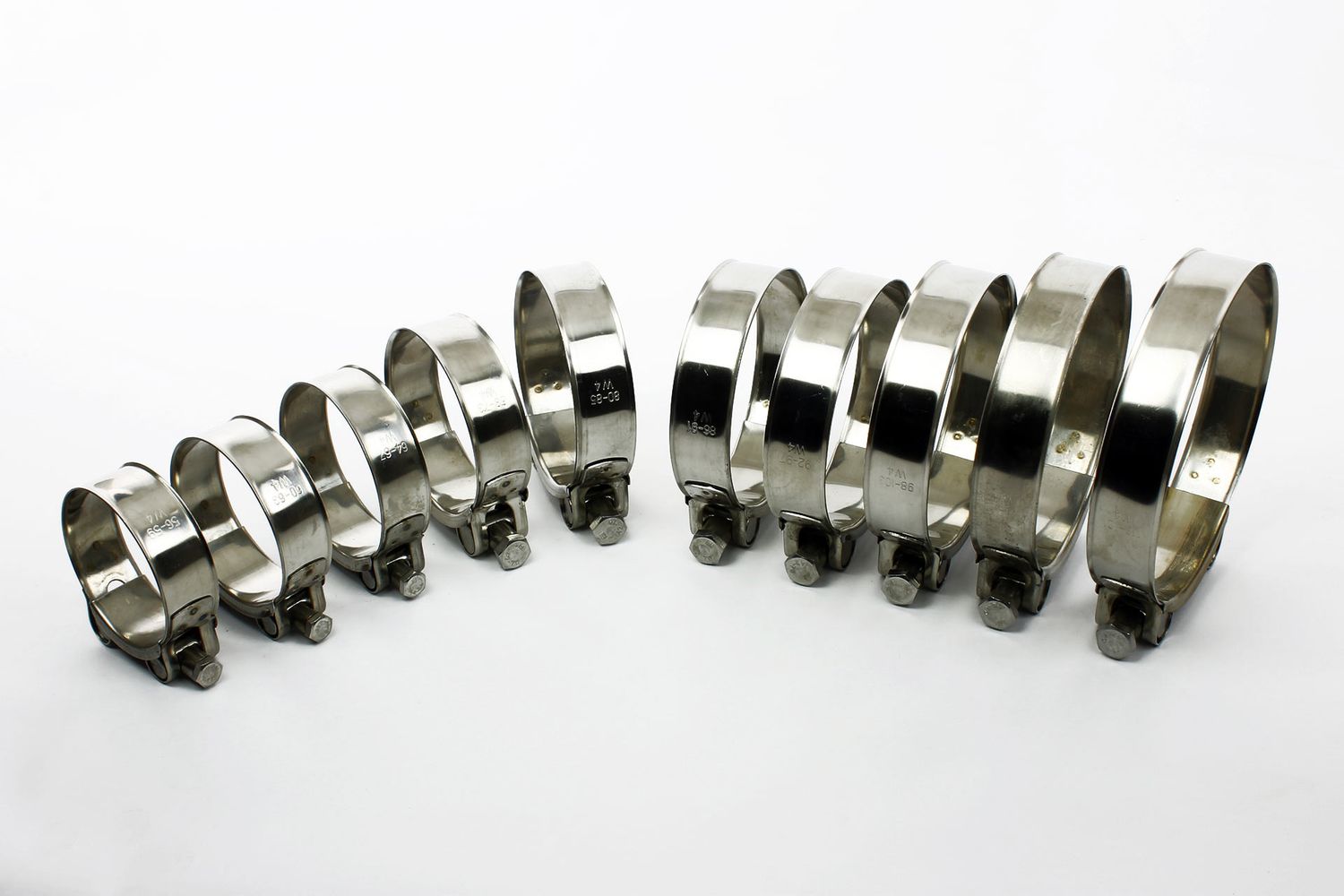

Stainless Steel W4 Heavy Duty T-Bolt Hose Clips Clamps
Product Details

These high quality heavy duty T-Bolt hose clips are made from T304 Stainless Steel, featuring W4 construction meaning the bolt, tongue and nut are also stainless steel as well as the band.

Provide much stronger clamping force than other types of clamp, making them particularly suited to high pressure applications such as turbo/intercooler hoses. The band width is 18mm for sizes up to 26mm-28mm, 20mm for sizes up to 40mm-43mm, 22mm for sizes up to 64mm-67mm and 24mm for all sizes above this.

The band is unperforated meaning they are suitable for use with softer silicone hoses as well as all other types of rubber hose.

New Mix & Match Option

You can now swap any clamps in a 2, 4 or 10 pack for a smaller size, allowing you to order exactly how many you need of each size. For example, if you need 5x 40-43mm, 3x 36-39mm and 2x 29-31mm you could order a 10 pack of 40-43mm and swap 5 clips for the smaller sizes.

Just add a note at checkout requesting the sizes you wish to swap, or contact us immediately after purchasing with the sizes required. Please note clips can only be swapped for a smaller size, not larger.

Fitting & Sizing

Each clamp has a specific range that it can be tightened between. To determine the size you need measure the outer diameter of the hose, ideally with the hose fitted to the vehicle as metal/plastic hose connections can expand the outer diameter of the hose slightly. The clamp size that this measurement falls into is the correct size for that hose.

Note: The clamping range for this type of clamp is quite small, so take care to measure accurately before ordering, and please contact us for advice if unsure. If you are measuring the hoses off the vehicle you may need to add 1mm-2mm to the hose outer diameter to account for the expansion of the hose, so for example a 40mm O.D. hose may become 41mm-42mm when fitted to the vehicle.

Specification

  • Fitment: Universal - suitable for all rubber and silicone hoses
  • Construction: 100% T304 Stainless Steel
  • Warranty: 3 Years (UK based)
Show More
You May Also Like

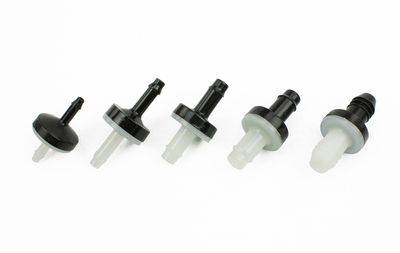

Universal Non-Return Valve / Check Valve - Brake Servo Booster & Catch Can
Universal Non-Return Valve / Check Valve - Brake Servo Booster & Catch Can
Universal Non-Return Valve / Check Valve - Brake Servo Booster & Catch Can
£2.92

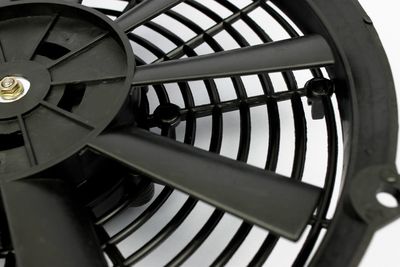

Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan
Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan
Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan
£15.79

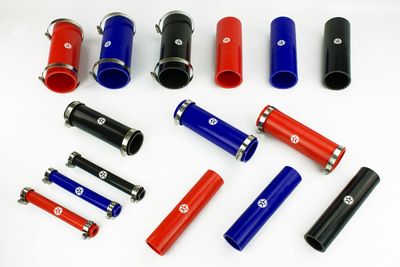

Aluminium Straight Couplers, 45/90 Degree Elbows & Hose Joiners
