Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan
+8
+7
+6
+5
+4
+3
+2

Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan

SKU SRU-RF
£15.79
** International customers please read our Import Fees & VAT page (link in footer) before purchasing.
Blade & Motor Type
Please choose
Include Stainless Steel Mounting Kit
Please choose
In stock
1
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Share this product with your friends
ShareSharePin it
Universal Slimline 12v Electric Car Radiator Intercooler AC Cooling Fan
Product Details

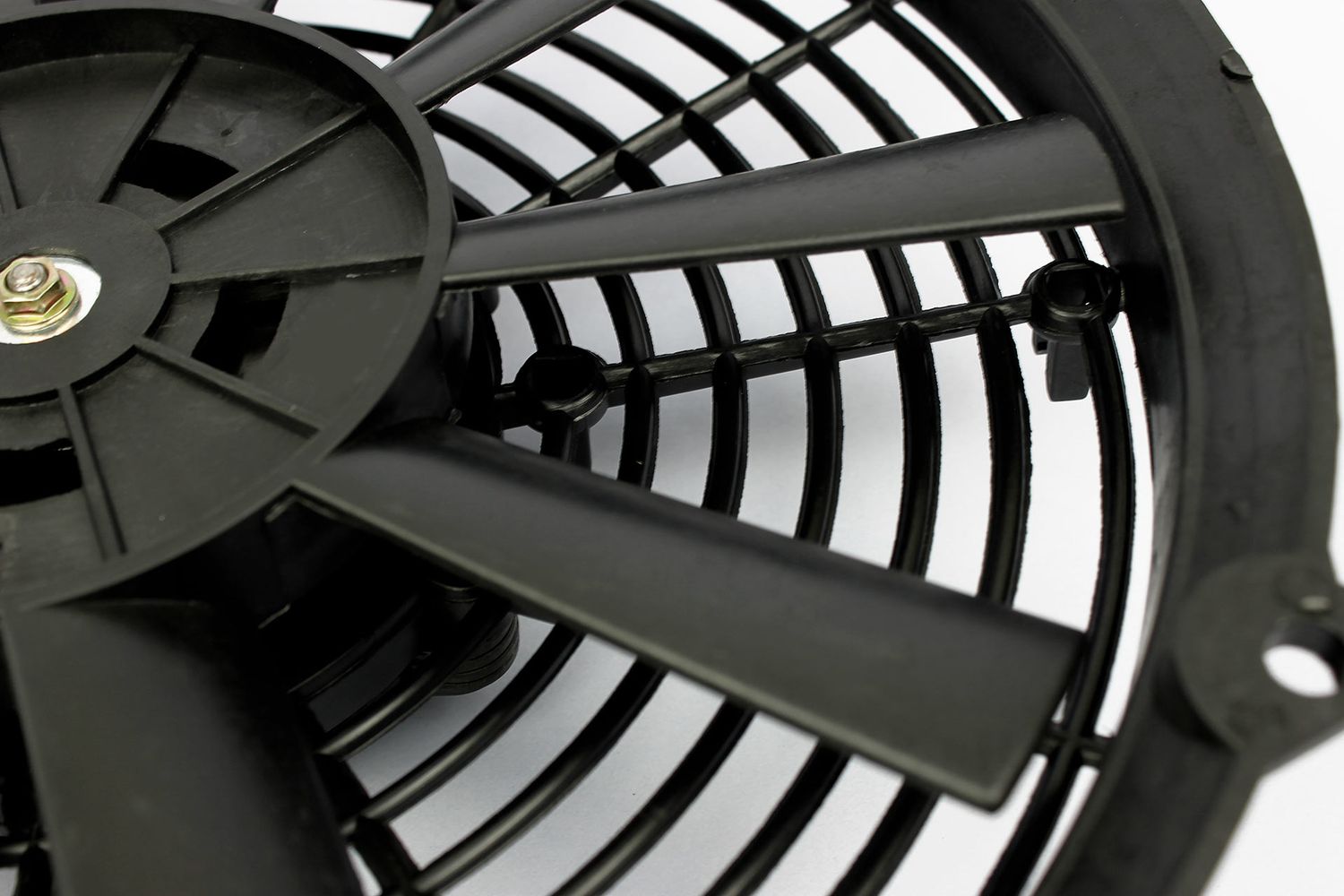

Our range of lightweight slimline universal electric cooling fans come in a variety of sizes to suit most automotive applications. Featuring a more robust design and manufactured from higher quality components for improved reliability, our fans are perfect for use as radiator, intercooler, auxiliary engine bay cooling or A/C condenser fans.

All our fans come assembled as Pull type, but feature reversible motors so you can easily flip the blade and turn it into a Push type. A link with instructions to do this can be found in the Fitting & Articles section.

For a Pull type fan you need to use the red wire as live and black wire as ground, whilst Push type fans use the black wire as live and red wire as ground, ensuring you have flipped the blade following the instructions.

Pull type fans mount on the rear engine bay side of the radiator to suck air through the radiator whilst Push type fans mount on the front bumper side of the radiator to blow air through the radiator towards the engine.

Where possible we recommend using a Pull type fan as cooling is generally more effective than the equivalent Push type fan.

The optional Stainless Steel Mounting Kit mounts the fan directly to a radiator core, similar to the commonly available plastic zip tie mounting kits but much stronger and more secure.

Please note this is a universal fan and will require wiring. The plastic connector contains 2x 6mm male spade terminals so it accepts two standard 6mm insulated female spade terminals for easy connection. We recommend wiring the fan direct from the battery via a Bosch-type relay and inline fuse. We cannot provide vehicle specific fitting instructions as it will vary from vehicle to vehicle but we can provide general fitting advice, please contact us if you need any assistance.

Description Part No.

Dimensions (A x B x C x D)

See Gallery Image

Fan Weight

(kg)

Current Draw

(amps)

8" Straight Blade 12v 80W SRU-RF08S-80W 212mm x 202mm x 72mm x 36mm 0.85kg <6a
10" Straight Blade 12v 80W SRU-RF10S-80W 290mm x 275mm x 67mm x 32mm 1.00kg <6.5a
12" Straight Blade 12v 120W SRU-RF12S-120W 320mm x 295mm x 70mm x 32mm 1.38kg <8.5a
14" Curved Blade 12v 160W SRU-RF14C-160W 375mm x 355mm x 82mm x 46mm 1.94kg <11.5a
16" Curved Blade 12v 160W SRU-RF16C-160W 420mm x 405mm x 78mm x 35mm 1.95kg <11.5a

Specification:

  • Application: Universal 12V
  • Connection Type: 2x 6.3mm Spade Terminals (Male)
  • Warranty: 2 Years (UK based)
