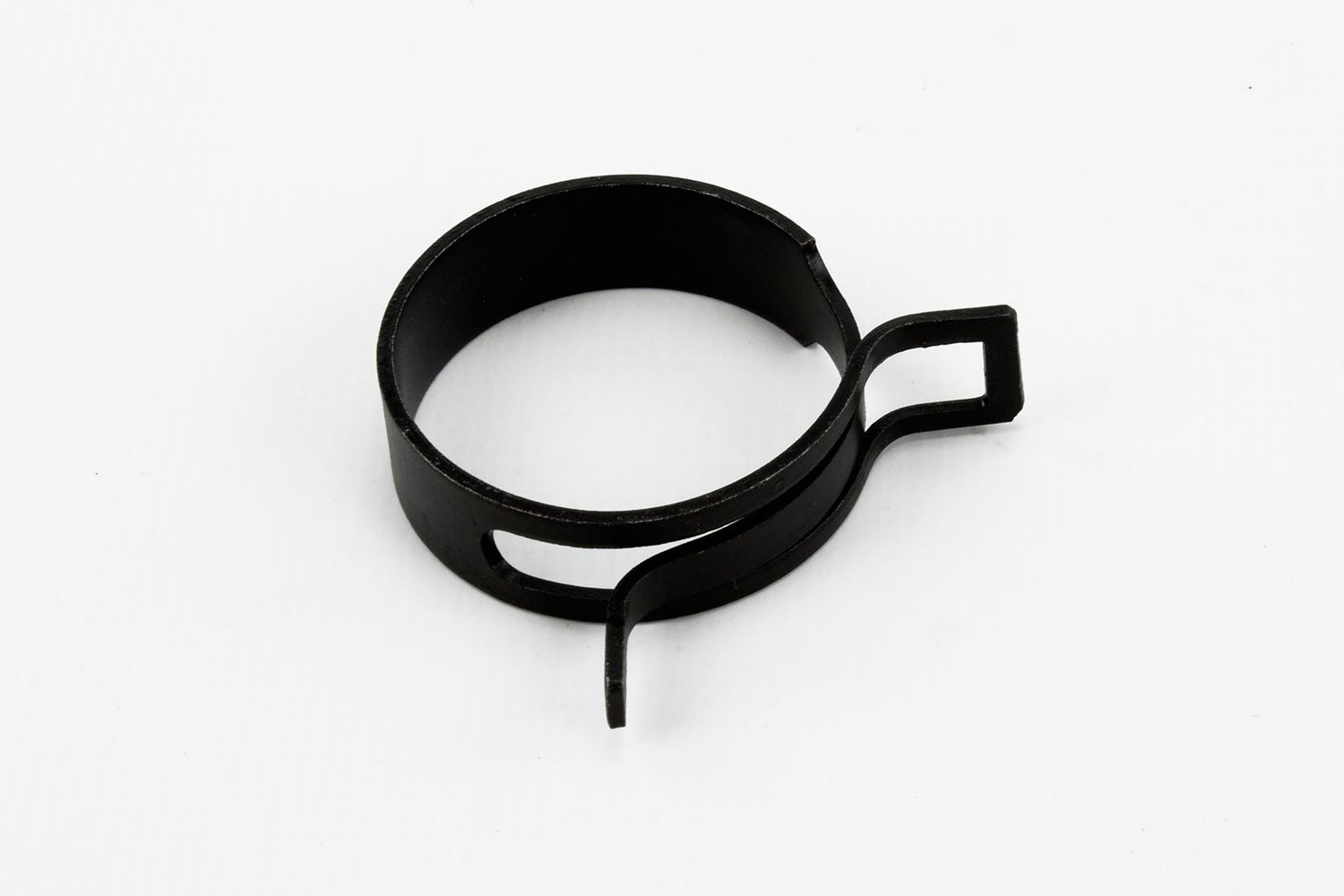

These high quality carbon steel spring hose clips provide a reliable clamping solutionfor any type of rubber hose, including silicone hoses. These are the same type of clamps used on most vehicles as standard due to their sealing reliability and no maintenance required.
Simple to fit using flat-nose pliers by squeezing the tabs together to widen the clamp, inserting over the hose and then releasing once in place.
New Mix & Match Option
You can now swap any clamps in a 2, 4 or 10 pack for a smaller size, allowing you to order exactly how many you need of each size. For example, if you need 5x 39mm, 3x 30mm and 2x 25mm you could order a 10 pack of 39mm and swap 5 clips for the smaller sizes.
Just add a note at checkout requesting the sizes you wish to swap, or contact us immediately after purchasing with the sizes required. Please note clips can only be swapped for a smaller size, not larger.
Full Bag Quantities
The quantity of clips in our Full Bag option varies by clamp size:
Fitting & Sizing
Each clamp has a specific size in millimetres, which is the size of the clamp when closed. To determine which size clamp you need measure the outer diameter (O.D.) of your hose, then refer to the table below so check what size clamp we recommend for any given hose size.
Note: The sizing for this type of clamps is quite precise so take care to measure accurately before ordering, and please contact us for advice if unsure.
Your Hose O.D. | Clamp Size to Use | Clamp Fully Open Size | Band width |
---|---|---|---|
4.1mm - 5.0mm | 4mm | 5mm | 6mm |
5.1mm - 6.0mm | 5mm | 6mm | 6mm |
6.1mm - 7.0mm | 6mm | 7mm | 6mm |
7.1mm - 8.0mm | 7mm | 8mm | 6mm |
8.5mm - 9.5mm | 8mm | 10mm | 8mm |
9.6mm - 10.5mm | 9mm | 10.5mm | 8mm |
10.6mm - 11.5mm | 10mm | 12mm | 8mm |
11.6mm - 12.5mm | 11mm | 13mm | 8mm |
12.6mm - 13.5mm | 12mm | 14mm | 8mm |
13.6mm - 14.5mm | 13mm | 15mm | 10mm |
14.6mm - 15.5mm | 14mm | 17mm | 10mm |
15.6mm - 17.0mm | 15mm | 18mm | 10mm |
17.1mm - 18.5mm | 16mm | 20mm | 10mm |
18.6mm - 20.0mm | 17mm | 21mm | 12mm |
20.1mm - 22.0mm | 19mm | 23mm | 12mm |
22.1mm - 23.9mm | 21mm | 24mm | 12mm |
24mm - 26.5mm | 23mm | 27.5mm | 12mm |
26.6mm - 29.0mm | 25mm | 30mm | 12mm |
29.1mm - 31.5mm | 27mm | 32.5mm | 15mm |
31.6mm - 32mm | 29mm | 34.5mm | 15mm |
32.1mm - 34.5mm | 30mm | 36mm | 15mm |
34.6mm - 37.5mm | 33mm | 39mm | 15mm |
37.6mm - 39.0mm | 35mm | 41mm | 15mm |
39.1mm - 42.0mm | 37mm | 46mm | 15mm |
42.1mm - 44.0mm | 39mm | 49mm | 15mm |
44.1mm - 46.0mm | 41mm | 50mm | 15mm |
46.1mm - 48.0mm | 43mm | 53mm | 15mm |
48.1mm - 50.0mm | 45mm | 54mm | 15mm |
50.1mm - 53.0mm | 47mm | 58mm | 15mm |
53.1mm - 58.0mm | 50mm | 60mm | 15mm |
Specification
