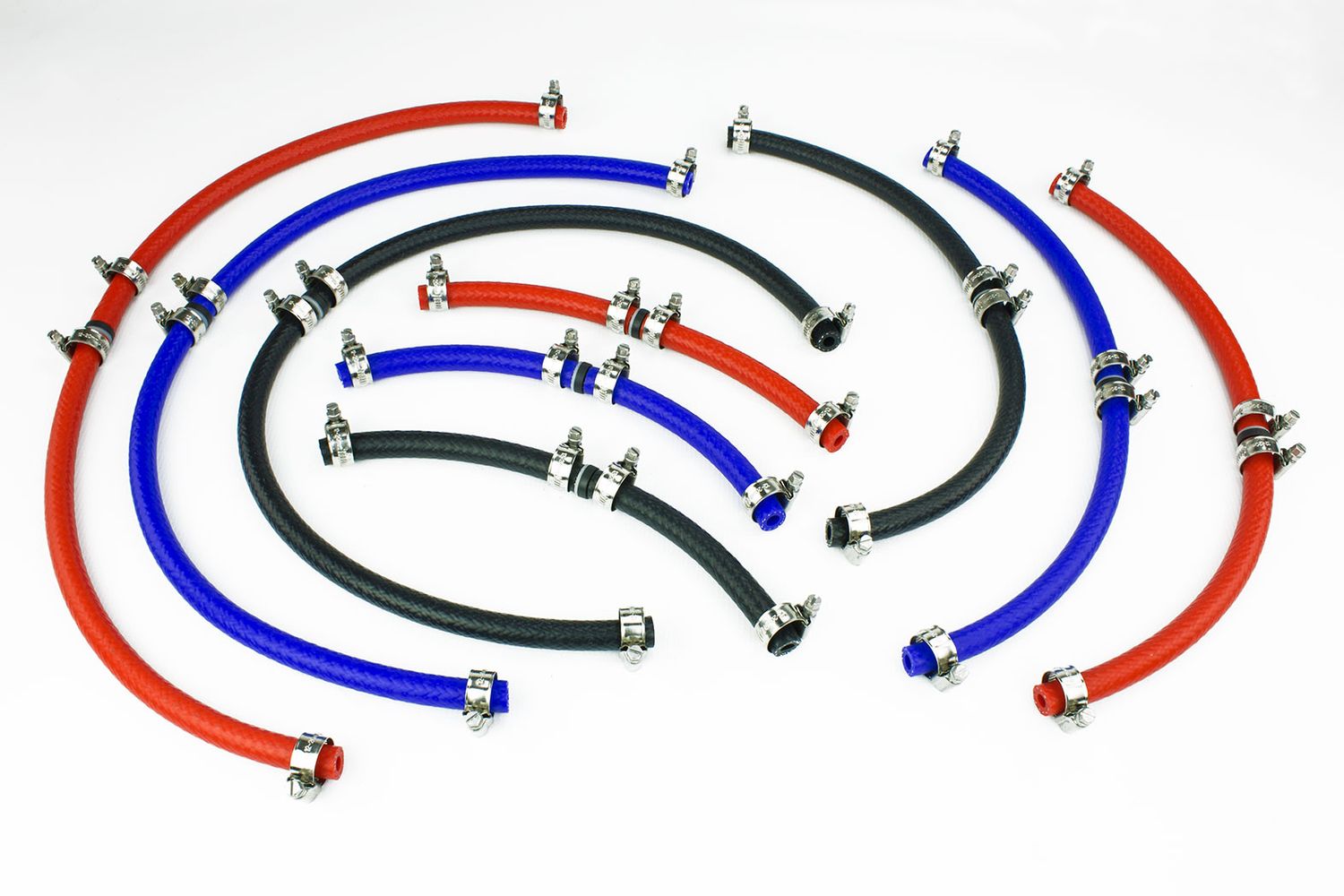

Universal Silicone Brake Servo Booster Hose with Check Valve

Our high quality reinforced Silicone Brake Servo Hose & Valve kit is made from extruded silicone rubber reinforced with strong polyester fabric for high pressure applications, and is resistant to both chemical spills and high temperatures for excellent durability. Also included are a pair of fully stainless steel worm-drive hose clips suitable for use with silicone hose.

Perfect for replacing a worn brake servo hose or faulty valve. Our kit is compatible with all brake servos and engines and availible in three lengths and three diameters to suit almost any application.

When fitted the small arrow on the Non-Return Valve should point towards the inlet manifold and away from the brake servo.

To check what diameter you need simply measure the internal diameter of your existing brake servo hose, or the external diameter of your brake servo inlet (not including any bead on the inlet).

The hose is semi-flexible but when measuring the length required we recommend allowing some excess, as the bend radius may be larger than expected, especially compared to pre-formed original hoses with sharp angles. The hose can be easily trimmed to length with a new stanley knife blade.

Availabe in Blue, Red and Black with internal diameters 6mm, 8mm or 10mm.

Please note that all screens display colours differently and while we make every effort to ensure our photos are as accurate as possible on the majority of monitors and devices the product colour may vary slightly from the colour you see on screen.

Specification:

• Application: Universal
• Construction: Extruded silicone with polyester reinforcing
• Max Operating Pressure: >4bar
• Burst Pressure: >7bar
• Operating Temperature range: -50°c to 180°c
• Warranty: 3 Years (UK based)
